Explorer Technology Group

Automating The Battery Test Industry

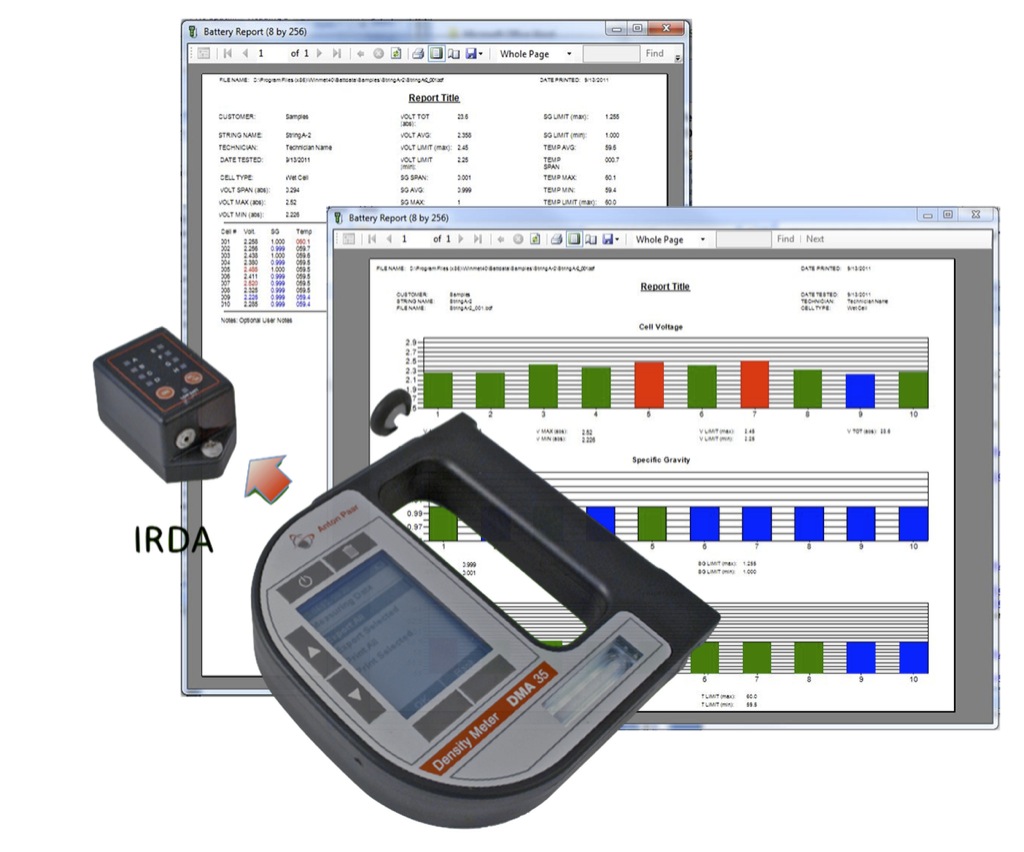

DMA35-BATT Data Logging Hydrometer Battery Test Package

Stacks Image 1040
Stacks Image 1038
The DMA35-BATT data logging hydrometer package enables the user to collect and store up to 8 strings of 256 specific gravity and temperature readings. This data can then be downloaded and analyzed with the Winmeter 5.1 Battery Analysis Software, enabling the user to quickly identify batteries that are likely to require preventative maintenance.

Stacks Image 819

Simple yet powerful...

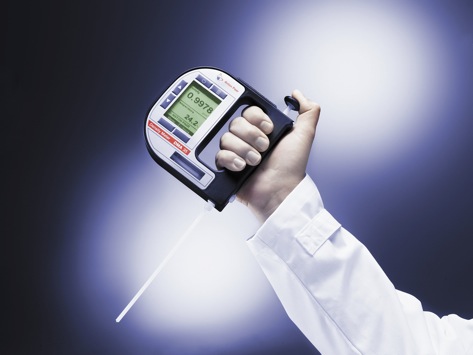

DMA35 Hydrometer (included)
Step 1: Use the included DMA35 digital hydrometer to take up to 256 readings of SG and temperature.

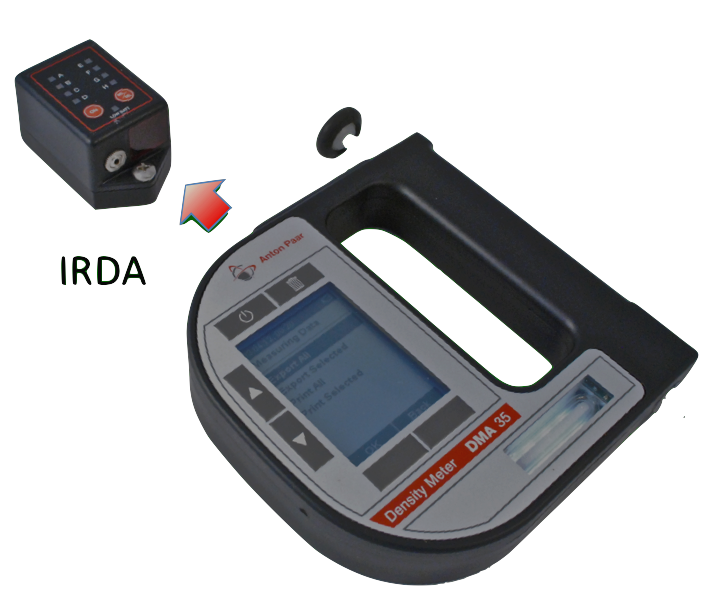

Wirelessly transfer DMA35 hydrometer readings to DMA35 data module in seconds
Step 2: Transfer the DMA35 readings (via IRDA) to the DMA35 data module. The module can hold up to 8 strings of 256 readings.

Upload DMA35 module data to Winmeter 5.0 Software

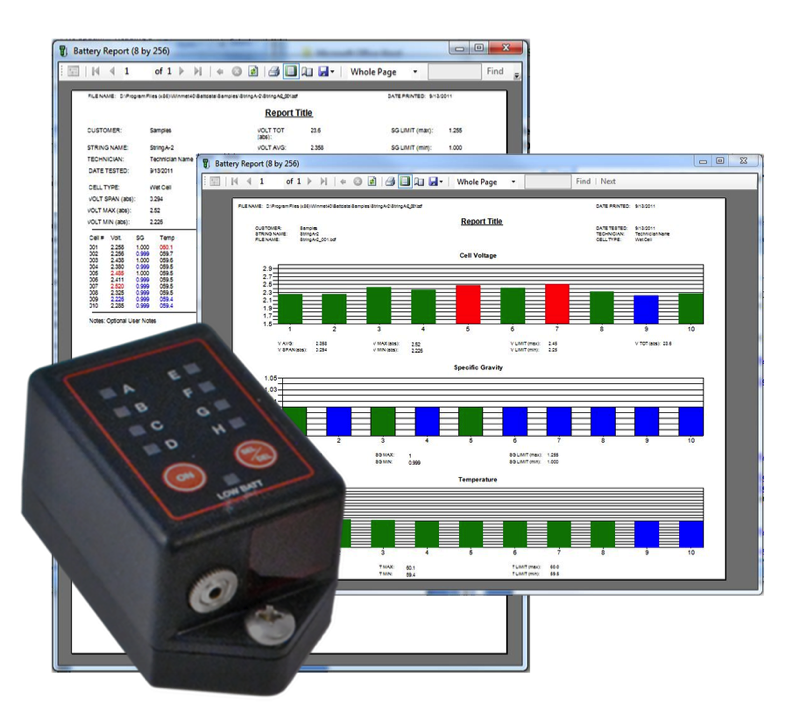

Step 3: Connect the DMA35 data module to a PC/Winmeter 5.1 battery analysis software to transfer all data and generate/save battery test reports.
