Battery Test Instruments
ETG offers a full range of battery test instruments. These are available separately (see below) or combined with companion instrument(s), a custom hard case and Winmeter 5.1 software in a range of battery test packages.

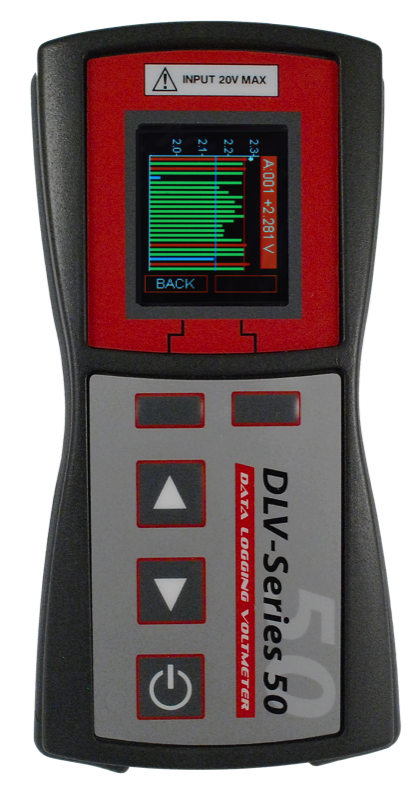

- Quickly record and view DC cell voltages with immediate out of tolerance indication.
- Perform a battery discharge test up on to 256 cells with up to 11 time-stamped data points for each cell
- Include optional time-stamped load current data (via shunt or current probe)
- Quickly upload and analyze hydrometer data.
- Immediately analyze voltage and hydrometer data on-site.
- Options include inbuilt graphical, statistical and threshold analysis on a full color high-resolution display.
- Date and time-stamping of last reading.
- Easily transfer data files to Winmeter 5.1 battery analysis software via USB plug & play.
______________________________________________________________________

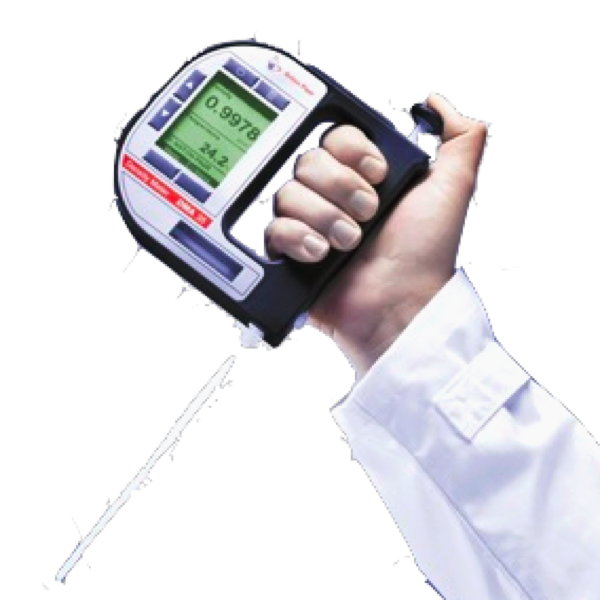

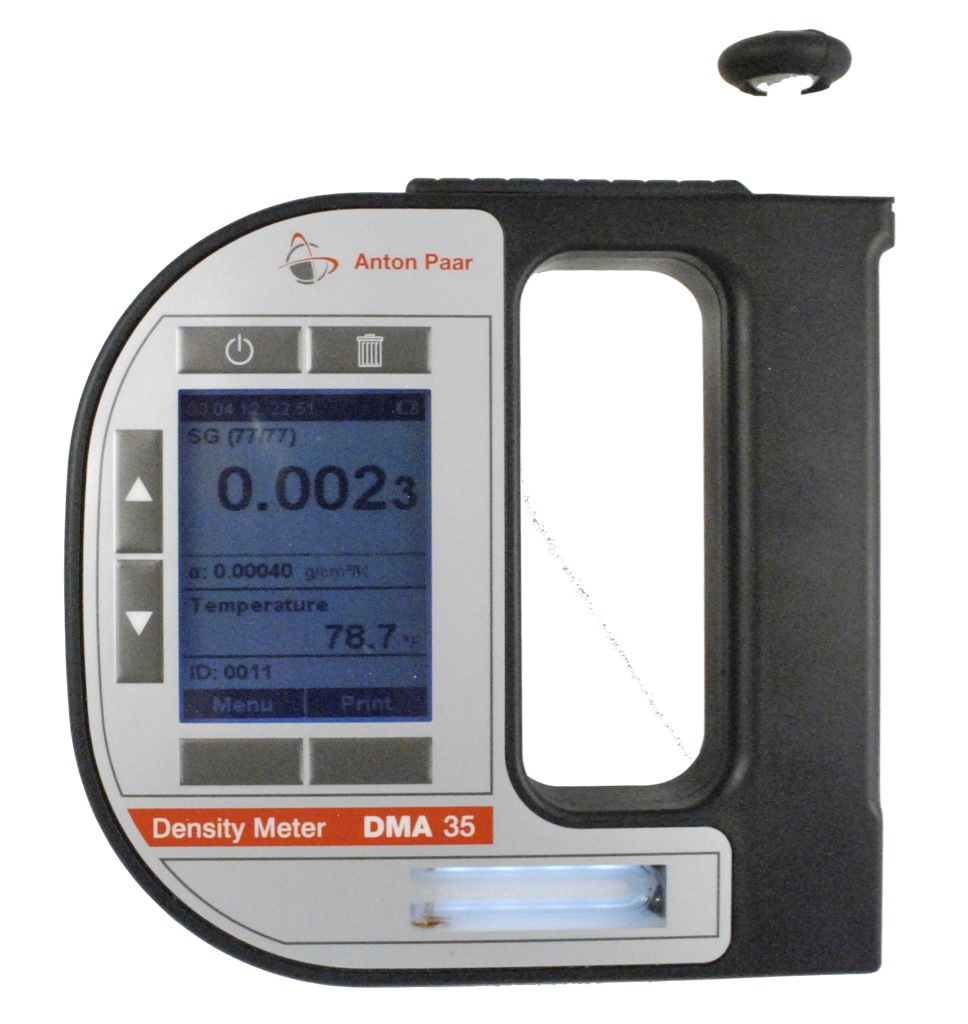

- Collect and store up to 1028 specific gravity and temperature readings.
- Measure specific gravity and temperature in less than 5 seconds.
- Specific gravity temperature is automatic and the unit is preconfigured for 77/77 F or 20/20 C.
- Can be used on all manufacturers “wet” cells by using the corner withdrawal tube or vent cap.
- IMPORTANT NOTE: The DMA35 hydrometer requires a DMA35 Data Module or DLV50 data logging voltmeter to transfer data to Winmeter 5.1 battery analysis software.
______________________________________________________________________

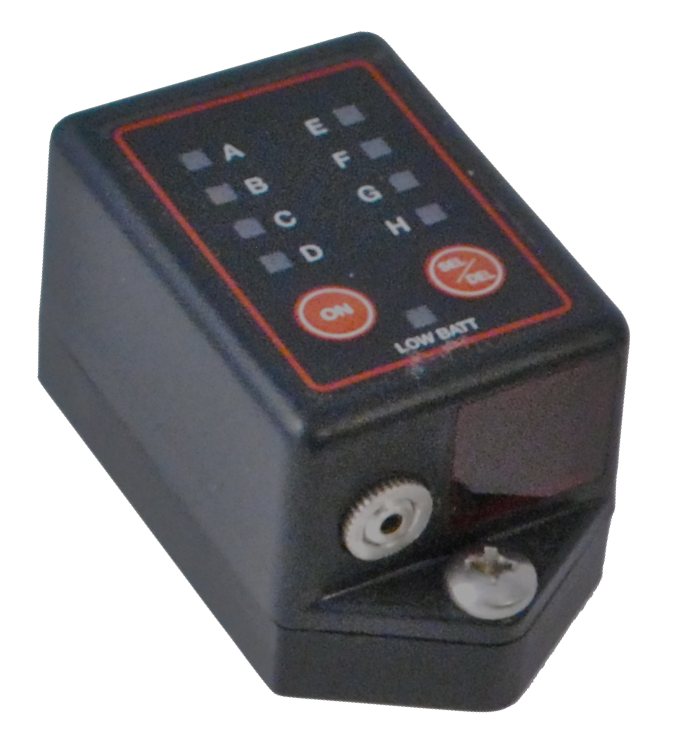

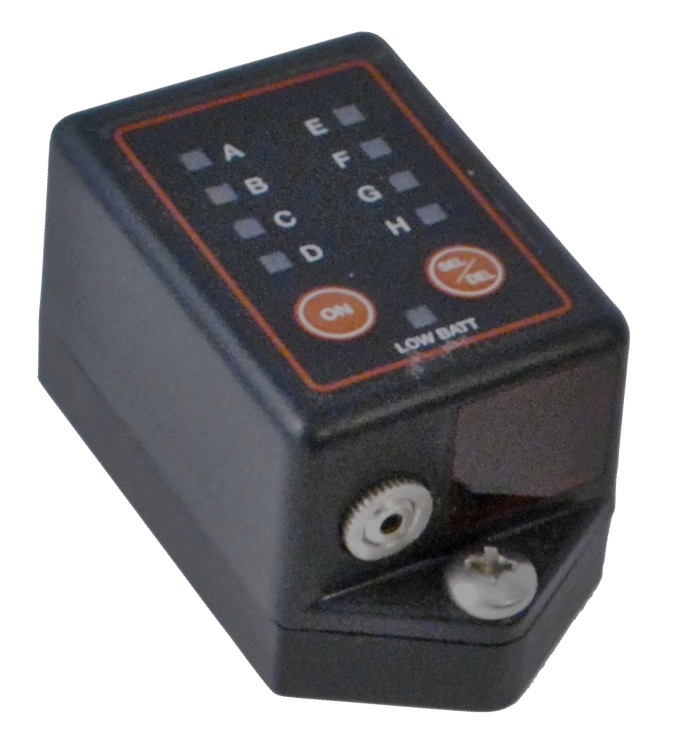

- Enables the DMA35 hydrometer to store up to 8 strings of 256 specific gravity and temperature readings.
- Enables data to be downloaded to and analyzed using the Winmeter 5.1 Battery Analysis Software.
- IMPORTANT NOTE: The DMA35 Data Logging Module requires a DMA35 Hydrometer.
- Consider upgrading to DLV50 Data Logging Voltmeter Plus.
______________________________________________________________________
- Measures and records SGU and temperature in less than 5 seconds.
- Stores up to 2048 readings of specific gravity and temperature.
- Displays cell number, specific gravity and temperature at the same time.
- Fast and safe because no fluids are withdrawn from the battery.
- Easily transfer hydrometer to Winmeter 5.1 Battery Analysis Software via RS232 connection.
- IMPORTANT NOTE: The DSG30 Hydrometer requires batteries that have at least a 5/16" corner access tube.
