DSG 30 Data Logging Hydrometer
The DSG-30 Hydrostik enables the user to collect and store up to 2048 specific gravity and temperature readings from batteries that have a 5/16" corner access tube.
Memory capacity is 8 strings of 256 readings. The user can then quickly and easily upload the test data to a PC/Winmeter 5.1 Battery Analysis Software via a RS232 PC interface.
Winmeter 5.0 battery analysis software is included with the instrument and has a powerful report generation and database capabilities; enabling the user to identify batteries that are likely to require preventative maintenance.
Memory capacity is 8 strings of 256 readings. The user can then quickly and easily upload the test data to a PC/Winmeter 5.1 Battery Analysis Software via a RS232 PC interface.
Winmeter 5.0 battery analysis software is included with the instrument and has a powerful report generation and database capabilities; enabling the user to identify batteries that are likely to require preventative maintenance.
Rugged yet powerful...
Quickly Record and View Specific Gravity and Temperature Readings
- Collect and store up to 8 strings of 256 specific gravity and temperature readings.
- Measure specific gravity and temperature in less than 5 seconds.
- Specific gravity temperature is automatic and the unit is preconfigured for 77/77 F or 20/20 C.
- Splash proof membrane keypad for robustness.
- Download hydrometer data to the Winmeter 5.1 Battery Analysis Software.
Combine data with an existing DLV30 or DLV40 DC Cell voltage data
- Upload both instruments separately with Winmeter 5.1 software.
- Combine cell voltage, specific gravity & temperature readings with Winmeter 5.1 software into one battery test report.
- IMPORTANT: DLV30 & DLV40 have been replaced by the DLV50
- New customers should consider purchasing the DMA35-DLV50-BATT battery test package.

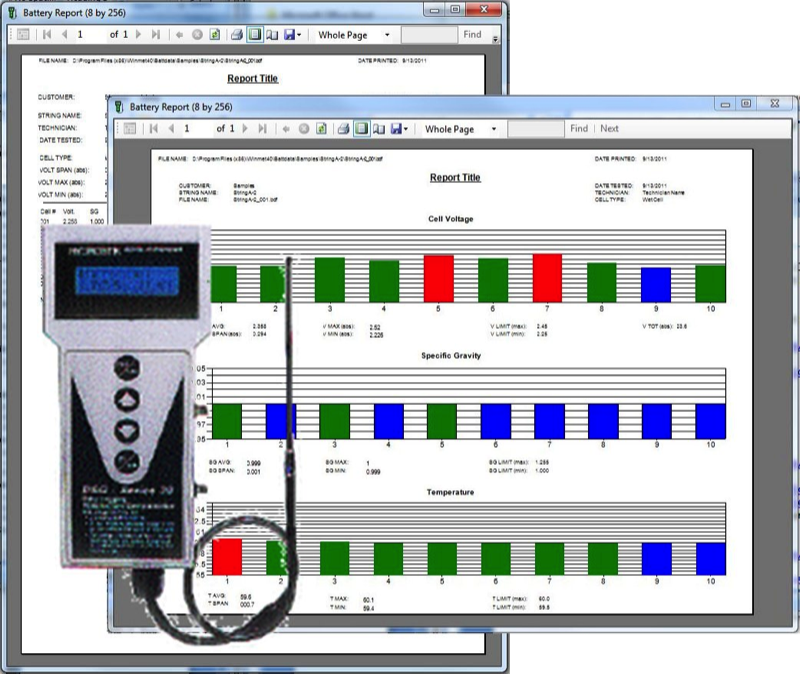

Easily Transfer Data Files to Winmeter 5.1 Battery Analysis Software
- Connect to PC (via RS232) to transfer data files to Winmeter 5.1 software.
IMPORTANT NOTE: The DSG30 Hydrometer requires batteries that have at least a 5/16" corner access tube.
Specifications
- Specific Gravity Measurement Range: 1.000 to 1.325SGU @ 77F/77F.
- Temperature Compensation Basis: 77F (25C).
- Specific Gravity Accuracy: +/- 0.004SGU.
- Calibrated Temperature Range: 50 to 110°F @ +/- 2F (larger ranges upon request).
- Max/Min Ambient Temperature: 50F to 100F (will work outside range with decreased accuracy).
- Shipping Weight: 68 ounces with carry case
- Enclosure Dimensions: 8.25” x 3.875” x 1.5”.
- Power Requirements: Four AA Batteries (Alkaline).
- Memory Capacity: 2048 readings (8 strings of 256).
- Memory Integrity: 10 years (with battery removed).
- Computer Download Interface: Half-duplex RS232C.
- IMPORTANT NOTE: The DSG30 Hydrometer requires batteries that have at least a 5/16" corner access tube.
Accessories
Winmeter 5.1 Battery Analysis Software (Included)
- Compatible with all ETG data logging battery test instruments
- Provides PC interface (USB plug and play and legacy RS232
- Statistical and graphic analysis & report generation
- Searchable battery test database
Learn more...
- Compatible with all ETG data logging battery test instruments
- Provides PC interface (USB plug and play and legacy RS232
- Statistical and graphic analysis & report generation
- Searchable battery test database
Learn more...

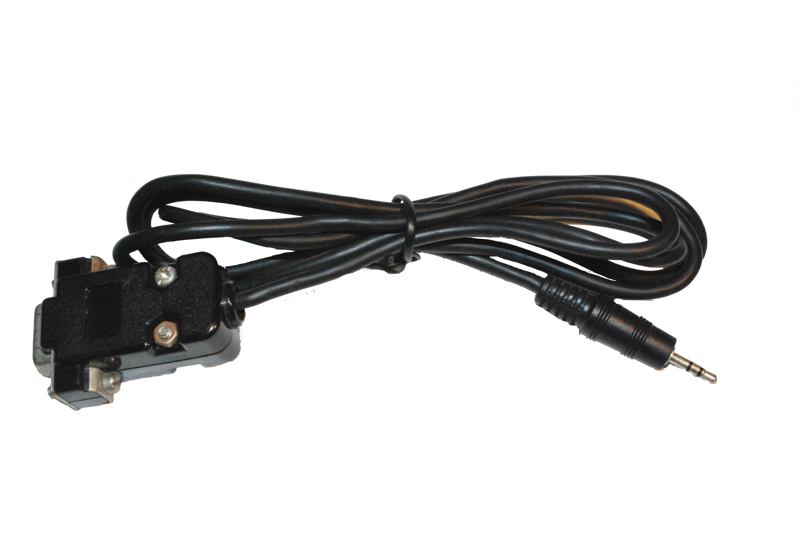

RS232 Download Cable (Included)
- Compatible with DMA35 Module, DMA35n Data Module, DSG30 & DLV30

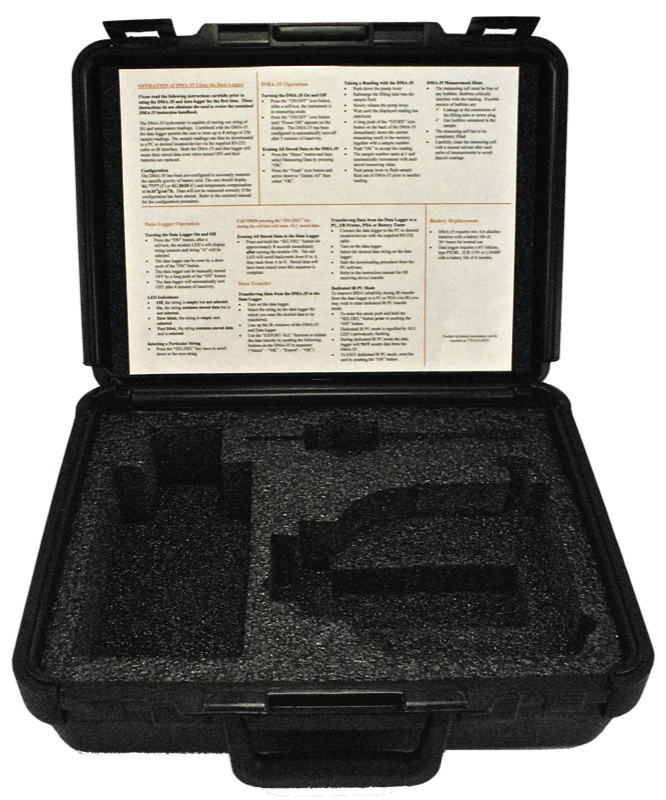

Custom Hard Case (Included)
- Space for all accessories
- Acid resistant

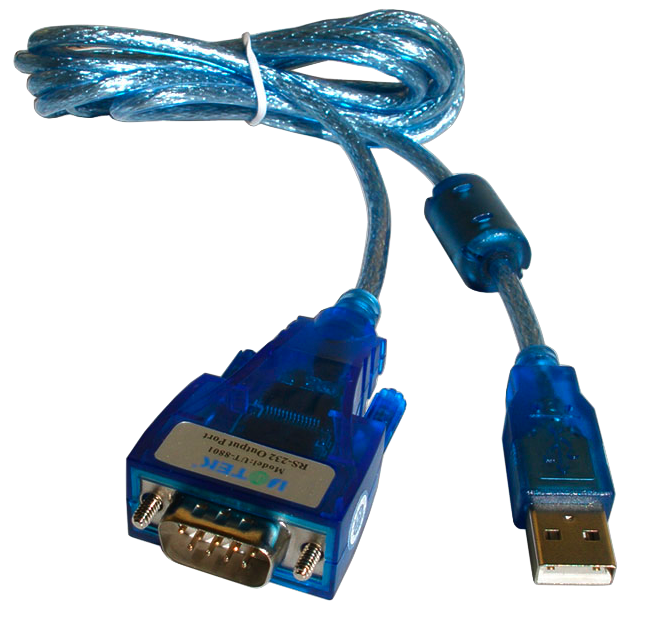

USB to RS232 Converter (Optional)
- Required to connect to newer PC’s without an available RS232 port
- Compatible with Windows XP, XP pro & WIndows 7
IMPORTANT: Beware inexpensive USB to RS232 adapters as these will not work correctly with Windows 7
